Professional Tire Repair Expert!
Clamp-in valves for passenger cars and light trucks produced with EPDM grommets, all Clamp-In valves are equipped with high-temperature valve cores. These tire repair clamp-in valves are recommended for tire pressure over 45 PSI.
Clamp-in valves for passenger cars and light trucks are the type of heavy-duty car tire valve stems, that attach to the wheel rim by clamping around it securely. These valve stems are designed to withstand the higher pressures and demands of truck tires, providing a reliable seal and ensuring efficient inflation and deflation of the tires. They are typically more robust than standard valve stems to handle the weight and stresses associated with commercial trucking.

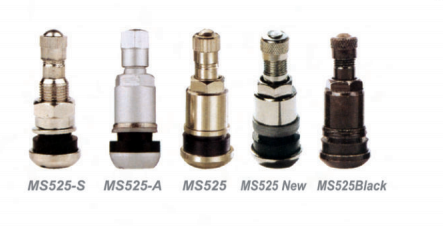

| Part No. | TR No. | Material | Rim Hole | Eff.Length | Box Qty | Case Qty |
| 501 | MS525-S | Brass | Φ11.5 | 41 | 50 | 10 |
| 502 | MS525-A | Aluminum | Φ11.5 | 42 | 50 | 10 |
| 503 | MS525 | Brass | Φ11.5 | 42 | 50 | 10 |
| 504 | MS525-N | Brass | Φ11.5 | 42 | 50 | 10 |
| 505 | MS525-B | Brass(Black) | Φ11.5 | 42 | 50 | 10 |
| Unit:mm | ||||||

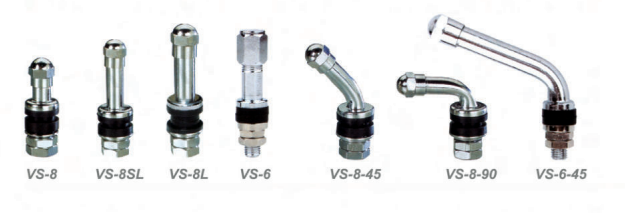

| Part No. | TR No. | REF No. | Material | Rim Hole | Eff.Length | Box Qty | Case Qty |
| 401 | VS-8 | TR26G, PVR43A | Chrome Plated Brass | Φ11.5 | 38 | 50 | 10 |
| 402 | VS-8SL | – | Chrome Plated Brass | Φ11.5 | 45 | 50 | 10 |
| 403 | VS-8L | – | Chrome Plated Brass | Φ11.5 | 48 | 50 | 10 |
| 404 | VS-6 | – | Chrome Plated Brass | Φ6 | 37 | 50 | 10 |
| 405 | VS-8-45 | WH303, PVR75A | Chrome Plated Brass | Φ11.5 | 16*53*45° | 50 | 10 |
| 406 | VS-8-90 | – | Chrome Plated Brass | Φ11.5 | 16*53*90° | 50 | 10 |
| 407 | VS-6-45 | – | Chrome Plated Brass | Φ6 | 16*53*45° | 50 | 10 |
| Unit:mm | |||||||

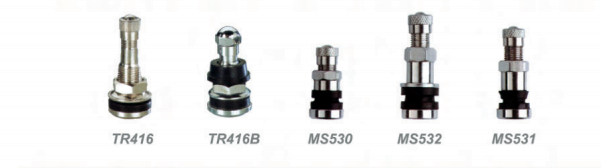

Nickel Plated Brass Truck Clamp-In Valves
| Part No. | TR No. | ETRTO No. | Material | Rim Hole | Eff.Length | Box Qty | Case Qty |
| 301 | TR416 | V2.05.2 | Nickel Plated Brass | Φ16 | 38 | 50 | 10 |
| 302 | TR416B | – | Chrome Plated Brass | Φ11.5/16 | 32 | 50 | 10 |
| 303 | MS530 | – | Chrome Plated Brass | Φ9.5 | 29 | 50 | 10 |
| 304 | MS531 | – | Chrome Plated Brass | Φ9.5 | 34 | 50 | 10 |
| 305 | MS532 | – | Chrome Plated Brass | Φ11.5 | 38 | 50 | 10 |
| Unit:mm | |||||||
Speak with strength – comprehensively solve your tire repair problem
